Diesel Power Type water well drilling rig

  • Diesel Power Type water well drilling rig
  • Diesel Power Type water well drilling rig
  • Diesel Power Type water well drilling rig

Diesel Power Type water well drilling rig

    Payment Type: L/C,T/T,Western Union
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: international standard wooden box
    Productivity: 200
    Brand: luteng
    Transportation: Ocean
    Place of Origin: china
    Supply Ability: 10
    Certificate: iso9001
    HS Code: 8430412100
    Port: Qingdao,Shanghai,Tianjin

Product Description

Diesel Power Type water well drilling rig

Product Description

The rig has the following advantages
1. The drill adopts automatic telescopic drilling tower, supported by two high-strength oil cylinders and controlled by a group of hydraulic valves, which saves time and labor in operation, is safe and reliable, and creates benefits for users to a large extent.
2, chassis with rubber track, light weight, low life cycle cost, can reduce the noise of the vehicle walking mechanism, reduce the vibration of the car body, can greatly reduce fuel consumption, can walk in the city road does not hurt the road.
3. The chassis comes with four high-strength thread supporting legs (or hydraulic supporting legs), which can be installed and adjusted quickly and conveniently, and can be used for leveling the working plane. The loading and unloading truck can reduce the hoisting cost and improve the efficiency, and can be used as auxiliary support when working.



Product Pictures

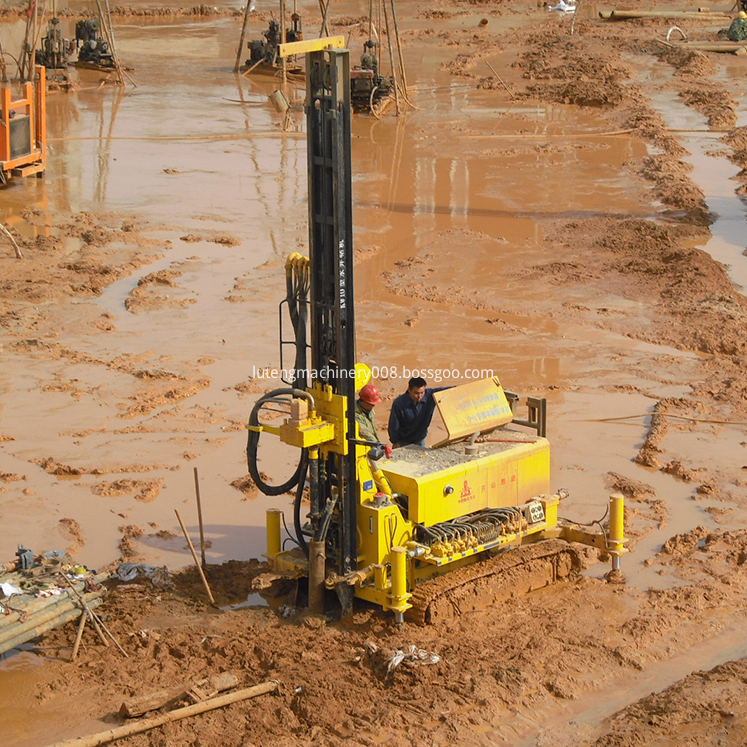

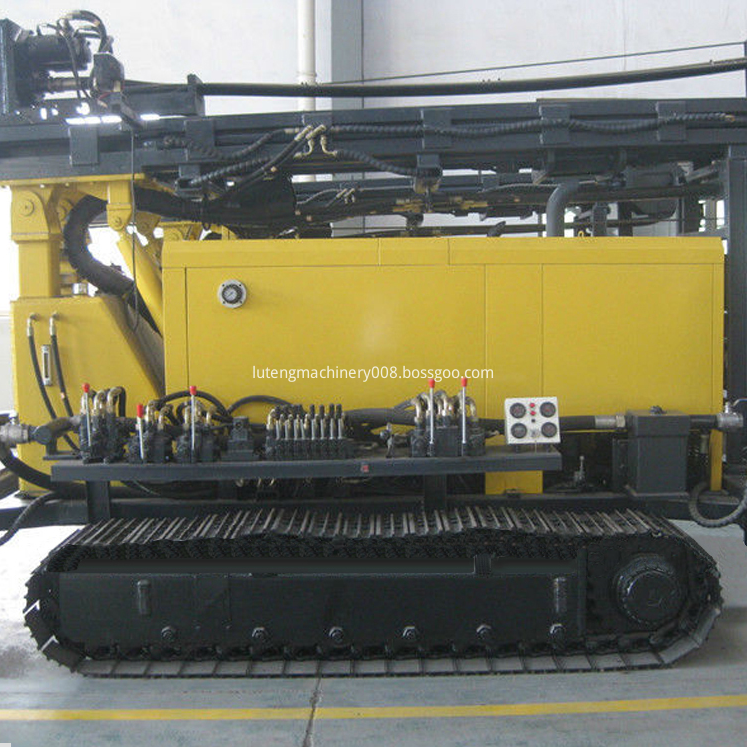

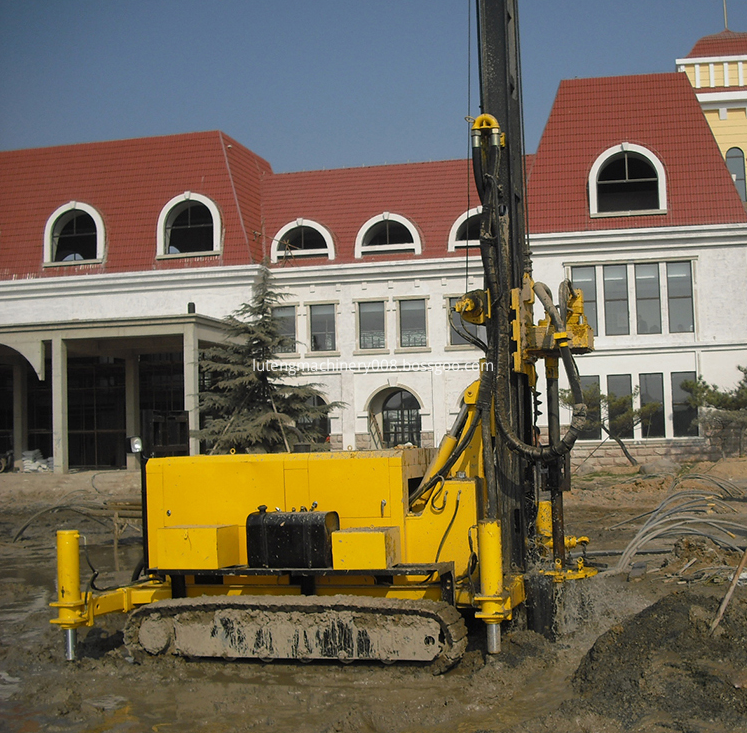

Multifunction Crawler Water Well Drilling RigCrawler type multifunctional well drilling machineCrawler Water Well Drilling Rig

KW400 water well drilling rig
Model KW400
Weight(Kg) 9800
Dimensions(mm) 7300×2250×2750
Traveling speed(Km/h) 0~2
Engine model YC6B125-K10
Power 92Kw/2200rpm
Climb capacity(°) 20
Drilling depth(m) 250
Working pressure(MPa) 1.05-2.46
Air consumption(m3/min) 16-54
Leng of rod(mm) 3000
Drill bit diameter(mm) φ110-273
Feed cylinder stroke(mm) 1400
Feed power(N) 44000
Lift power(N) 95000
Speed of rotator(rpm) 57
94
Lifting speed(m/min) 4.2
37.8
Fltting speed(m/min) 0-8.9
80.4
Rotation torque(N·m) 5700

Technical Parameters:
